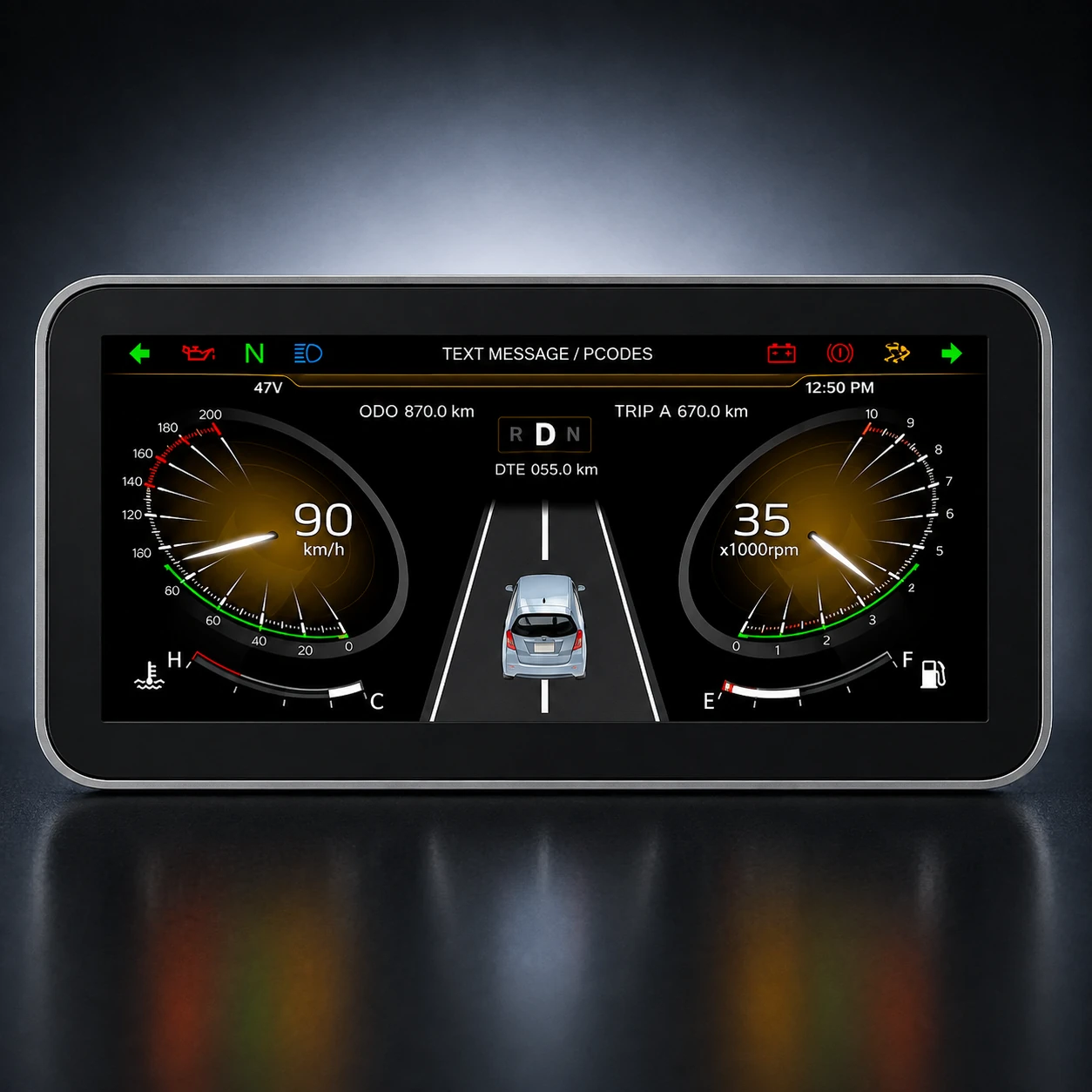

N12.3 Digital Display

Indication Instruments has developed N12.3 Digital Display that is a quality 12.3 inches digital TFT IPS display intended for use in commercial cars, construction machines, special cars, and industrial purposes. The high-resolution screen with 1920 × 720 pixels provides the highest quality images and graphics. Equipped with the latest generation of processors, RCAR-E3, it can handle CAN 2.0B protocol communications, analog/digital inputs, steering wheel switch controls, and the possibility of reverse park assist operations. Camera input with fisheye correction is included. In terms of screen characteristics, the IPS display with 1000 cd/m² brightness and 1000:1 contrast ratio is easy to see in various conditions. It operates within the range of 8V - 32V power supply system. There is reverse polarity detection, integrated buzzer, and UDS Boot Loader software update capability. The device casing is made of ABS material and it has IP65 degree of protection against dust and water splashes. The operating temperature range varies from -35°C up to +85°C. The N12.3 is designed for advanced digital dashboard applications across a wide range of vehicle platforms.
