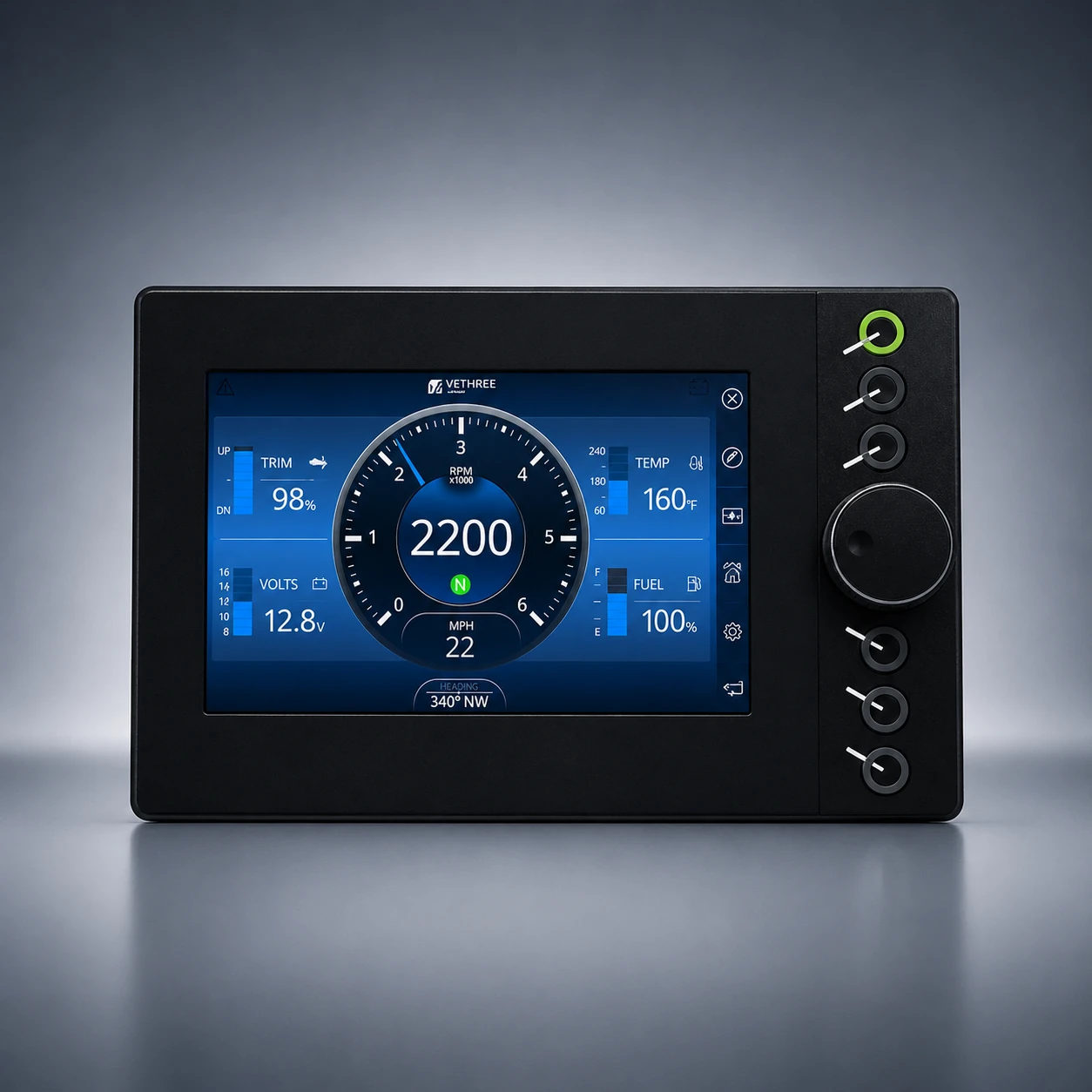

D7 Digital Display
Indication Instruments’ D7 Digital Display is a rugged 7-inch intelligent display for automotive, off-highway, industrial, marine, agricultural, and commercial vehicles, featuring a PCAP touchscreen, tactile buttons, rotary encoder, NXP i.MX8 processor, Qt graphics, extensive connectivity, and IP66/IP67 protection for demanding environments.
Overview
Overview of the D7 Digital Display
The D7 is built for visibility, connectivity, and reliable operation. The fully bonded 1000 NIT TFT stays readable in direct sun; PCAP touch gives a familiar tablet-style interface. Where touch is a poor fit-gloves, mud, washdown-the six illuminated tactile buttons and rotary encoder keep this tactile button display usable. Robust sealing, a wide temperature range, and a full communications set make it an automotive digital display and off-highway display rather than a consumer panel. Compared with the T7i, the D7 is the higher-performance 7-inch rugged display: i.MX8, bonded 1000 NIT glass, physical controls, wireless/cellular options, and richer I/O.
Specifications
Technical Specifications
Core hardware, I/O, interface, and operating parameters for D7 Digital Display.
USB
4 x USB 2.0 Port
Inputs
4 Digital Inputs, 2 Analog Inputs
Memory
1 GB RAM
Display
Rugged 7” Dual Touchscreen / Tactile Button Display
Storage
8 GB eMMC
Software
Qt - Cross-Platform Software Development
Processor
IMX8 Processor from NXP
Brightness
1000 NIT
Protection
IP67
Resolution
1024 × 600
Video Input
4 x Video Inputs
Connectivity
WiFi and Bluetooth
Display Type
Fully Bonded TFT LCD
Communication
2 x CAN Ports, WiFi, Bluetooth
Relay Outputs
1
Touch Interface
PCAP
Display Interface
Dual Channel LVDS
Operating Temperature
-30°C to +85°C
Features
Features of our D7 Digital Display
Hardware, interface, and protection capabilities built into the D7 Digital Display.
- 01
7-inch rugged display with PCAP + tactile controls
- 02
Dual touchscreen display / tactile button display operation
- 03
NXP i.MX8 processor
- 04
Fully bonded 1000 NIT TFT LCD
- 05
1280 × 768 resolution
- 06
Six illuminated tactile buttons with colour control
- 07
Rotary encoder for page navigation
- 08
CAN, Ethernet, RS485, RS422, and RS232
- 09
Bluetooth, Wi-Fi, and 4G CAT1
- 10
Analogue, digital, relay, PWM, and video I/O
- 11
Audio output and internal buzzer
- 12
6-36 V DC supply
- 13
IP66 front and IP67 all-round protection
- 14
Operating temperature -30 °C to +85 °C
- 15
Qt-based cross-platform software development
Applications
Applications of D7 Digital Display
- 01
Off-highway vehicles
- 02
Construction equipment
- 03
Agricultural machinery
- 04
Industrial equipment
- 05
Marine applications
- 06
Commercial vehicles
- 07
Engine and machine monitoring systems
- 08
Connected asset management applications
Why Us
Why Choose Indication Instruments for D7 Digital Display?
Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01
Built as a 7-inch rugged display for difficult conditions
02
1000 NIT bonded glass for outdoor visibility
03
Touch plus tactile buttons and encoder in one automotive digital display
04
Modern wired and wireless connectivity for connected machines
05
Display, electronics, and Qt software from one engineering path
06
Broad I/O for off-highway, industrial, marine, and commercial vehicles
07
In-house application support
