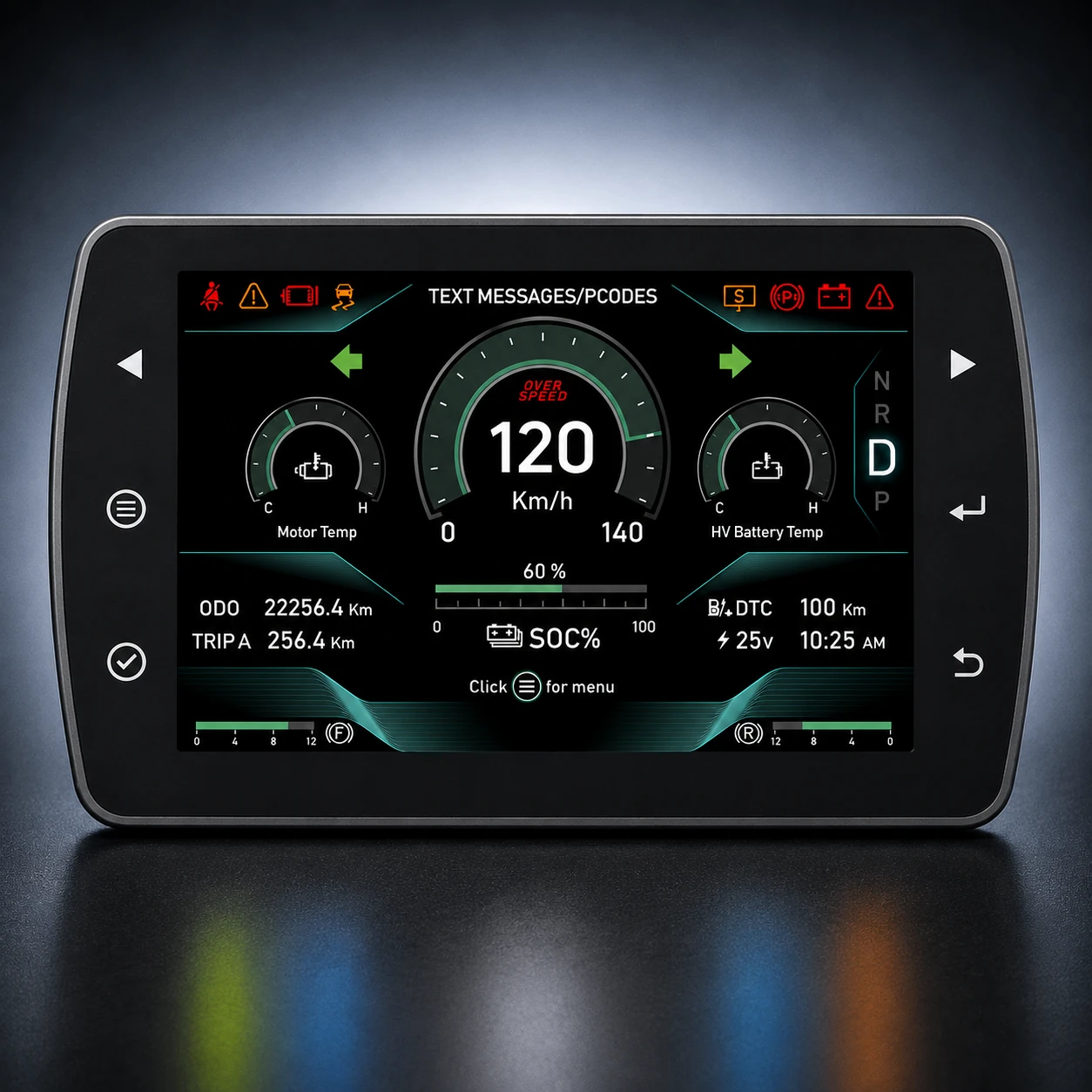

N76 Digital Display
A rugged 7-inch TFT display with CAN 2.0B connectivity, capacitive touch navigation, and IP67-rated protection for heavy-duty vehicle applications.
Overview
Overview of the N76 Digital Display
The features of N76 Digital Display include provision of quality data, improved diagnostics of the car and user-friendly performance under harsh working conditions. The display has a high-brightness TFT screen with clear visibility and touch sensitive control using six capacitive touch buttons. N76 Digital Display is built for installation in heavy duty vehicles and supports all types of input data, including analog, digital and CAN input signals, allowing integration with modern vehicle architecture. It has capability of software updates using UDS Boot Loader and can be equipped with two cameras.
Specifications
Technical Specifications
Core hardware, I/O, interface, and operating parameters for N76 Digital Display.
Inputs
Accepts Digital / Analog / CAN2.0B signals
Output
12V Output
Display
7.0” coloured TFT
Connector
Plug & Play connector (20 pins x 2 Molex connectors)
Compliance
EMC compliant
Navigation
Screen navigation through 6 Capacitive Touch buttons on screen
Protection
IP67
Resolution
800 × 480
Application
Heavy duty applications (Automotive, Off-Road, Specialty, Non-Mobility vehicles)
Software Update
Through UDS Boot loader
Touch Interface
6 Capacitive Touch buttons
Features
Features of our N76 Digital Display
Hardware, interface, and protection capabilities built into the N76 Digital Display.
- 01
7-inch colour TFT display
- 02
800 x 480 pixel resolution
- 03
Full graphical vehicle monitoring interface
- 04
Six capacitive touch navigation buttons
- 05
Dual CAN 2.0B communication support
- 06
Supports analog, digital and CAN signals
- 07
Dual camera input capability (CVBS x 2)
- 08
Plug-and-play dual Molex connector architecture
- 09
Multi-tone audio warning buzzer
- 10
Software updatable through UDS Boot Loader
- 11
Reverse polarity protection
- 12
EMC compliant design
- 13
IP67 environmental protection
- 14
Designed for heavy-duty vehicle applications
- 15
Suitable for automotive and off-road environments
Types
Types of N76 Display Features Offered
- 01
The N76 features high-end display, sturdy design and flexible car connectivity in one single unit.
- 02
The 7” TFT display provides a resolution of 800 x 480 pixels and also offers a graphical visualization of various aspects of vehicle data, alerts, etc. There are six capacitive touch buttons integrated within the display that help ease the navigation process.
- 03
Dual CAN 2.0B communication capability enables the N76 to connect to the modern-day car systems network. There are multiple analog and digital inputs for flexible compatibility along with two camera inputs for rear view camera and other purposes.
- 04
There is a multi-tone buzzer within the N76 which allows customized warning signals. Updates in software and features can be made using the UDS Boot Loader facility.
Why Us
Why Choose Indication Instruments for N76 Digital Display?
Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01
Purposefully engineered to operate in extreme vehicles environment
02
Robust IP67 & EMC standards
03
State-of-the-art CAN communication features
04
Multi-faceted compatibility with analogue, digital & camera input signals
05
Upgrade software feature via UDS Boot Loader
06
User-friendly capacitive touch navigation panel
07
Efficient audio and visual alarm functions
08
Customizable instrumentation system through in-house engineering know-how
09
Trusted instrumentation systems in automotive & industrial applications around the world
