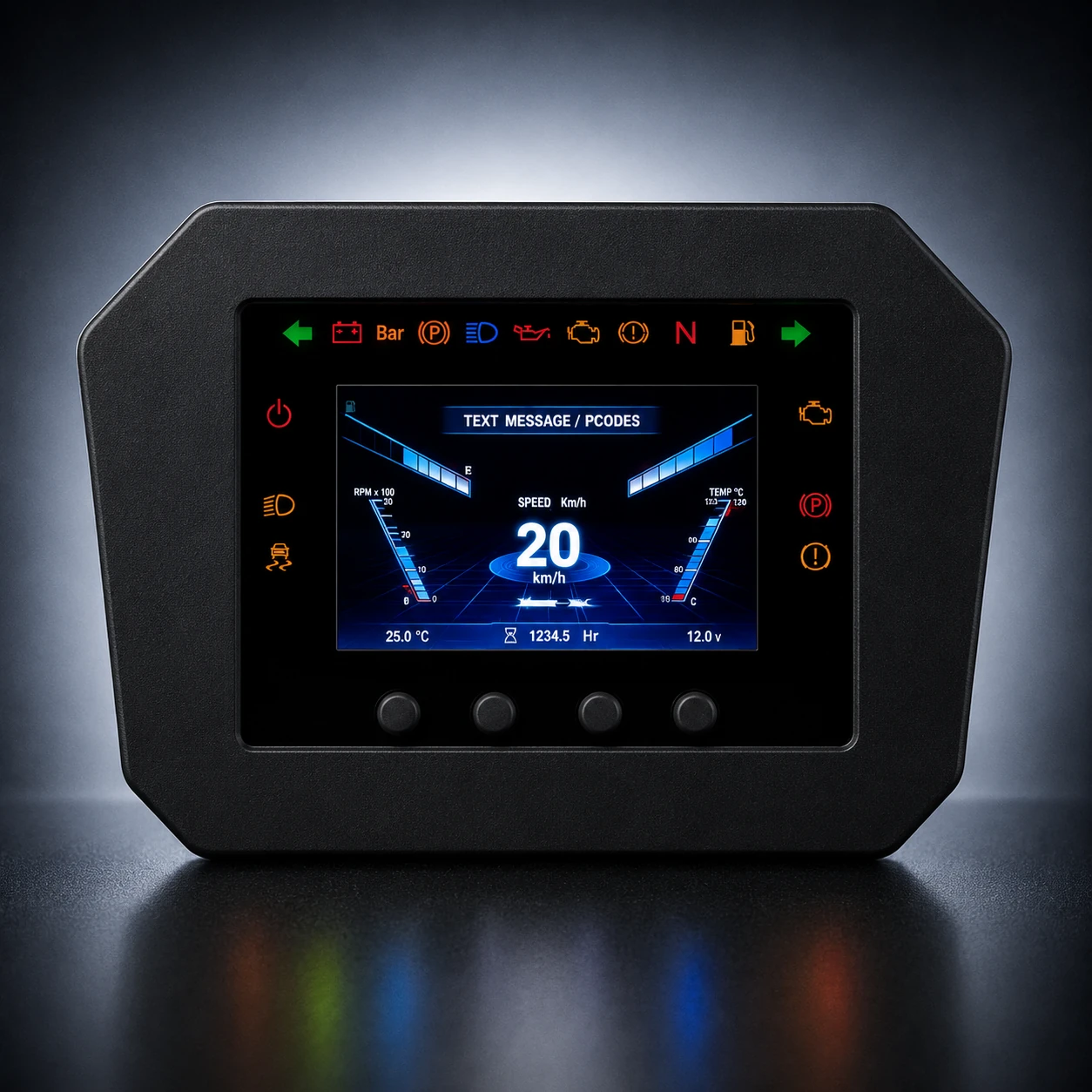

L5K Digital Display
Indication Instruments’ L5K Digital Display is a rugged 5 inch digital display (800 × 480 TFT) for automotive, agricultural, construction, off-highway, and industrial vehicles,
Overview
Overview of the L5K Digital Display
The L5K Digital Display puts vehicle information, alerts, and diagnostics on one organised graphical interface. It accepts analogue and digital inputs and talks to other modules on CAN 2.0B. Audio alerts and integrated tell-tales raise awareness when a condition needs attention. The pack is field-updatable and housed for automotive and off-highway duty (8-32 V DC, IP65, EMC-compliant ABS-PC). Compared with L4C3 / L4C5, the L5K is a full digital cluster rather than four stepper gauges plus a 5-inch TFT. Compared with H7B, it is a 5-inch unit with sixteen tell-tales rather than a 7-inch connected cluster with LED bar graphs.
Specifications
Technical Specifications
Core hardware, I/O, interface, and operating parameters for L5K Digital Display.
Inputs
Accepts 8 digital & 2 analog inputs
Display
5” Coloured TFT
Compliance
EMC compliant
Protection
IP65
Resolution
800 × 480
Connectivity
Plug and Play connectors
Communication
CAN2.0B
Software Update
Through UDS Boot Loader
Camera Interface
Analog Camera
Telltale Indicators
16 symbols
Electrical Protection
Reverse Polarity Protection
Features
Features of our L5K Digital Display
Hardware, interface, and protection capabilities built into the L5K Digital Display.
- 01
5-inch colour TFT display
- 02
800 × 480 screen resolution
- 03
Digital instrument cluster functionality
- 04
16 integrated tell-tales
- 05
CAN 2.0B communication
- 06
8 digital input channels
- 07
2 analogue input channels
- 08
Reverse-camera interface
- 09
Audio warning functionality
- 10
UDS boot loader for firmware updates
- 11
Alert and warning message management
- 12
High-visibility anti-glare display
- 13
Reverse-polarity protection
- 14
Over-voltage protection
- 15
EMC-compliant design
- 16
Rugged ABS-PC housing
- 17
IP65-rated environmental protection
- 18
Operating voltage 8-32 V DC
- 19
Designed for demanding automotive and off-highway applications
Applications
Applications of L5K Digital Cluster
- 01
Commercial and off-highway vehicles
- 02
Agricultural and construction equipment
- 03
Platforms that need a 5-inch TFT instrument cluster with tell-tales and camera input
- 04
Programmes that already use CAN 2.0B
Why Us
Why Choose Indication Instruments for L5K Digital Display?
Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01
Built for modern vehicle dashes
02
CAN Bus digital cluster architecture
03
Analogue and digital signal monitoring
04
Audio and visual warnings
05
Reverse-camera connectivity
06
Field updates via UDS boot loader
07
IP65 and EMC-compliant construction
08
In-house vehicle-instrumentation support
