Non-Touch Screen

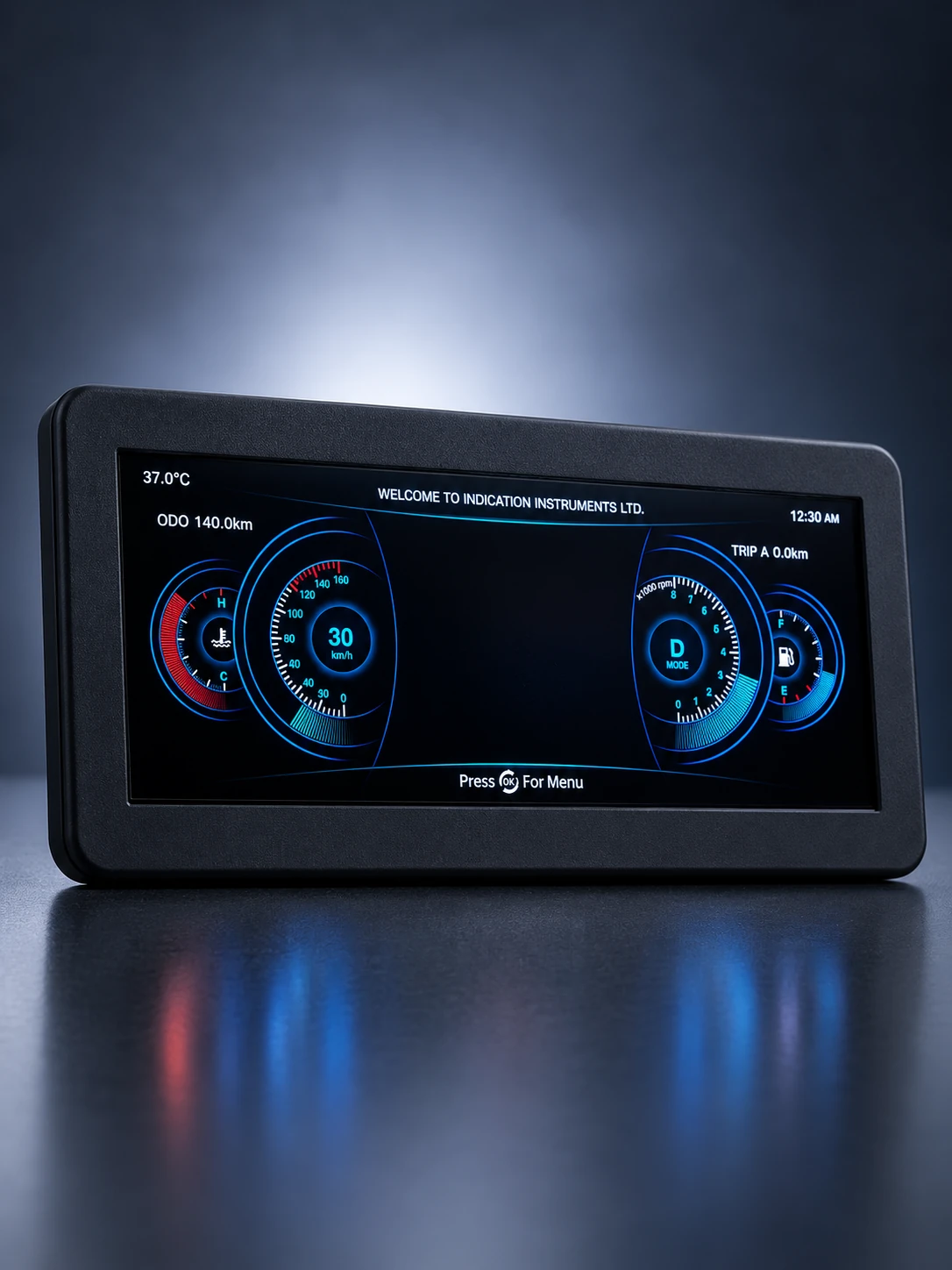

N10.25 Digital Display

Name: N10.25 Digital Display
Brand: Indication Instruments

Scroll to discover

The N10.25 Digital Display is a wide-format vehicle cluster with a high-brightness 10.25-inch TFT for speed, alerts, warnings, and system status. CAN 2.0B, analog and digital inputs provide easy vehicle integration, while steering-switch controls and reverse park assist enhance

Request Data Sheet

Scroll to discover

Overview

Overview of the N10.25 Digital Display

The N10.25 Digital Display comes packed with features that make use of advanced vehicle information management. The high brightness TFT display ensures great readability and provides the ability to design complex graphs for vehicle information such as speeds, alerts and warnings. CAN Communication and various analog and digital inputs make the display compatible with the vehicles existing system. The use of steering wheel switches makes operation easy without diverting attention away from the road.Reverse parking assist camera and fish-eye correction technology make the N10.25 Digital Display a vehicle security and awareness tool. The N10.25 incorporates sophisticated display capabilities, smart vehicle connectivity, and tough durability into an integrated digital instrument cluster system.

discover more

Specifications

Technical Specifications

Core hardware, I/O, interface, and operating parameters for N10.25 Digital Display.

Inputs

Accepts 4 analog signals and 9 digital signals

Display

10.25” colored TFT

Compliance

EMC compliant

Navigation

Provision of screen navigation through steering switch

Protection

IP65

Resolution

1024 × 600

Connectivity

Plug and Play connectors

Communication

CAN2.0B interface

Software Update

Through USB

Camera Interface

Analog camera interface for reverse park assist with fish eye correction

Features

Features of our N10.25 Digital Display

Hardware, interface, and protection capabilities built into the N10.25 Digital Display.

01
10.25-inch colour TFT display
02
Wide-format digital instrument cluster
03
High-brightness display for excellent visibility
04
Steering switch-based screen navigation
05
CAN 2.0B communication interface
06
Supports analog and digital vehicle signals
07
Reverse park assist camera integration
08
Fish-eye correction capability
09
USB software update support
10
Plug-and-play connector architecture
11
Multi-tone audio warning buzzer
12
Vehicle warning and alert management
13
Reverse polarity protection
14
EMC compliant design
15
IP65 environmental protection
16
Designed for automotive and heavy-duty applications

Types

Types of N10.25 Display Features Offered

01
The N10.25 incorporates sophisticated display capabilities, smart vehicle connectivity, and tough durability into an integrated digital instrument cluster system.
02
Equipped with a high-quality 10.25-inch colour TFT display, the unit boasts an expansive format which allows for simultaneous display of several parameters related to vehicle operation, warning signals and images. High resolution guarantees great graphics and readability in challenging conditions.
03
The system is capable of working with CAN 2.0B data transfer, alongside with analog and digital input channels, facilitating easy compatibility with vehicle electronics and sensors. The steering switch system provides an easy menu browsing facility.
04
Reverse park assist camera connection facilitates video display, including fish-eye correction. Firmware upgrades via USB allow for future-proofing the device.

Why Us

Why Choose Indication Instruments for N10.25 Digital Display?

Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.

High-end wide-screen digital dashboard cluster design

High performance vehicle monitoring and diagnostic abilities

Steering wheel switches for easy navigation

Reverse parking assistance incorporated into the design

Highly reliable CAN bus communication system

Durable IP65 automotive grade construction

Upgradeable software to ensure future development capabilities

Built to withstand harsh heavy duty operations

Built on the experience of Indication Instruments in vehicle electronics

FAQ

Frequently Asked Questions

What is the N10.25 Digital Display used for?

The N10.25 Digital Display is a 10.25-inch TFT automotive digital cluster for commercial, agricultural, construction, mining, off-road, industrial, and electric vehicles. It shows vehicle data, warnings, and camera views on one heavy duty digital dashboard.

Which processor and communication does the N10.25 use?

It runs on the iMX9325 platform with CAN 2.0B, plus analog and digital inputs so ECU and sensor data share the same CAN bus display.

What are the screen specifications?

A 10.25-inch color TFT at 1280 × 480, normally black transmissive, 1000 cd/m² brightness and 1200:1 contrast for a readable off-road vehicle display.

Does the N10.25 support a reverse camera and steering-switch control?

Yes. It accepts LVDS video, reverse park assist with fish-eye correction, and menu navigation from steering switches.

How is the N10.25 protected and updated?

It uses an IP65 ABS housing, EMC-compliant electronics, reverse-polarity protection, 8-32 V supply, -35 °C to +85 °C operation, and USB software updates.
