Display
7" colour TFT, 800 × 480, capacitive touch, optical bonded cover glass
Touch Screen

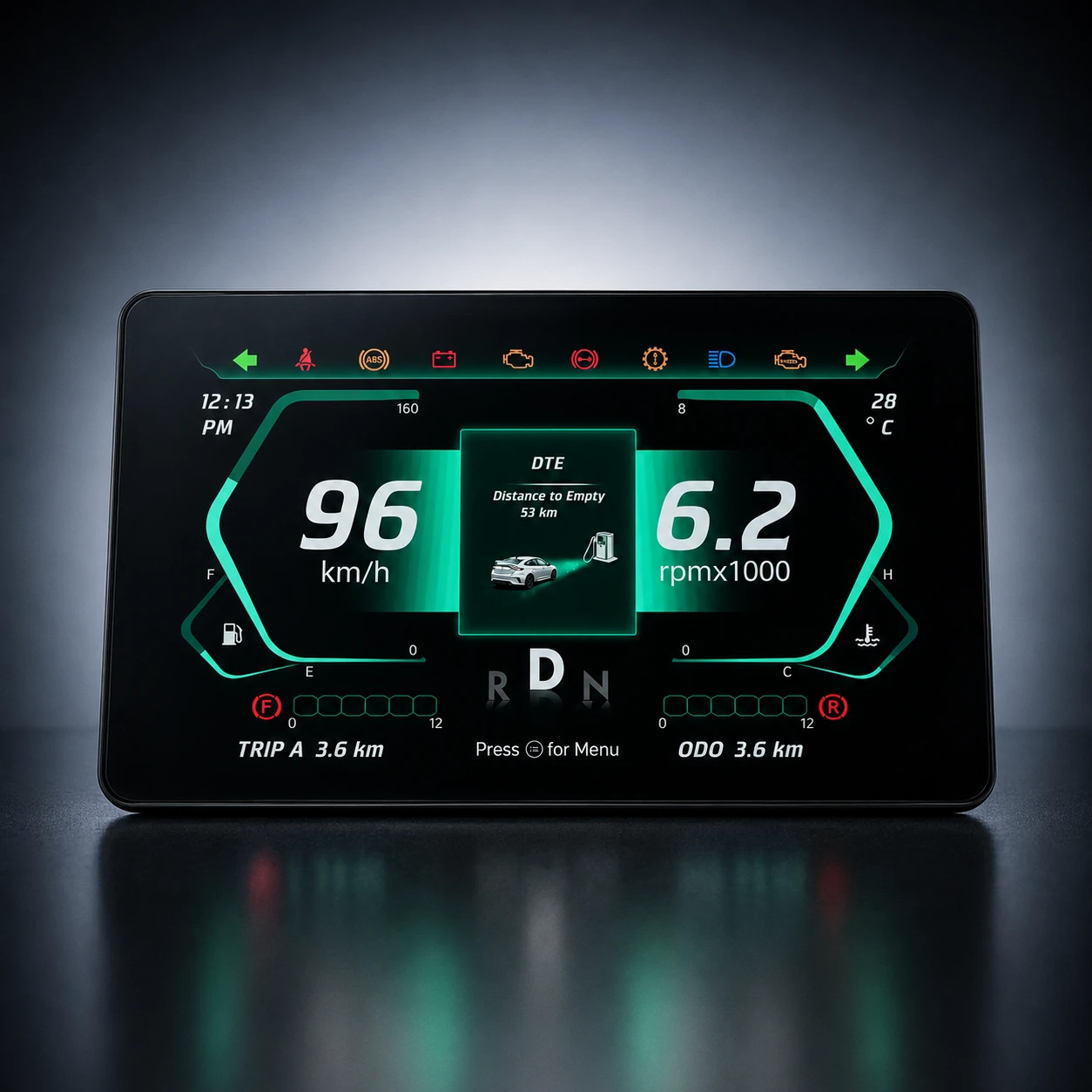

N7T Digital Display
7-inch capacitive TFT vehicle display with 800×480 resolution, dual CAN 2.0B, dual CVBS camera inputs, optical bonded cover glass, and IP67 protection for automotive, off-road, and industrial applications.
Overview
Overview of the N7T Digital Display
The N7T 7” Touchscreen Digital Display is a rugged TFT operator interface for vehicle monitoring, diagnostics, and control across automotive, industrial, agricultural, construction, mining, off-highway, and specialty vehicles. Optical bonded cover glass with anti-glare and anti-reflective coating keeps the 800×480, 1000 cd/m² screen readable in bright outdoor conditions. Capacitive touch replaces extra hardware buttons. Analog, digital, and dual CAN 2.0B inputs, plus dual CVBS camera channels, let the same unit talk to existing vehicle electronics and show rear-view or RPAS video on one screen.
Specifications
Technical Specifications
Core hardware, I/O, interface, and operating parameters for N7T Digital Display.
Brightness
1000 cd/m²
Contrast ratio
1000:1
Surface
Anti-glare and anti-reflective coating
Navigation
Capacitive touch panel on screen
Inputs
Analog, digital, dual CAN 2.0B, dual CVBS video (camera / RPAS view)
Output
12V output
Communication
Dual CAN 2.0B
Connector
Plug-and-play Molex architecture
Audio
Multi-tone buzzer for audio warning
Software
UDS Boot Loader for software updates
Supply voltage
8-32 V
Protection
Reverse polarity protection, IP67
Compliance
EMC compliant
Housing
ABS enclosure, IP67
Operating temperature
-30°C to +80°C
Standby
Low standby power consumption
Features
Features of our N7T Digital Display
Hardware, interface, and protection capabilities built into the N7T Digital Display.
- 01
7-inch colour TFT display
- 02
800 × 480 resolution
- 03
1000 cd/m² brightness, 1000:1 contrast
- 04
Capacitive touchscreen
- 05
Optical bonded cover glass
- 06
Anti-glare and anti-reflective surface
- 07
Dual CAN 2.0B
- 08
Analog, digital, and CAN signal support
- 09
Dual CVBS video inputs for camera integration
- 10
Plug-and-play Molex connector architecture
- 11
Multi-tone audio warning buzzer
- 12
UDS Boot Loader software updates
- 13
Reverse polarity protection
- 14
EMC-compliant electronics
- 15
IP67 ingress protection
- 16
8-32 V operating range
- 17
-30°C to +80°C operating temperature
- 18
Designed for demanding vehicle environments
Applications
Applications of the N7T Digital Display
- 01
Commercial vehicles
- 02
Agricultural machinery
- 03
Construction equipment
- 04
Mining vehicles
- 05
Specialty vehicles
- 06
Electric vehicles
- 07
Utility vehicles
- 08
Off-road equipment
- 09
Industrial machines
- 10
Fleet and connected vehicle platforms
Why Us
Why Choose Indication Instruments for N7T Digital Display?
Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01
Modern capacitive touch user experience
02
Optical bonded high-brightness display
03
IP67 enclosure and EMC-compliant design
04
Dual CAN 2.0B vehicle communication
05
Dual CVBS camera inputs for safer manoeuvring
06
Field updates via UDS Boot Loader
07
Multi-tone audio plus on-screen alerts
08
Suited to automotive, off-road, EV, and industrial platforms
09
Backed by Indication Instruments’ vehicle-electronics experience
