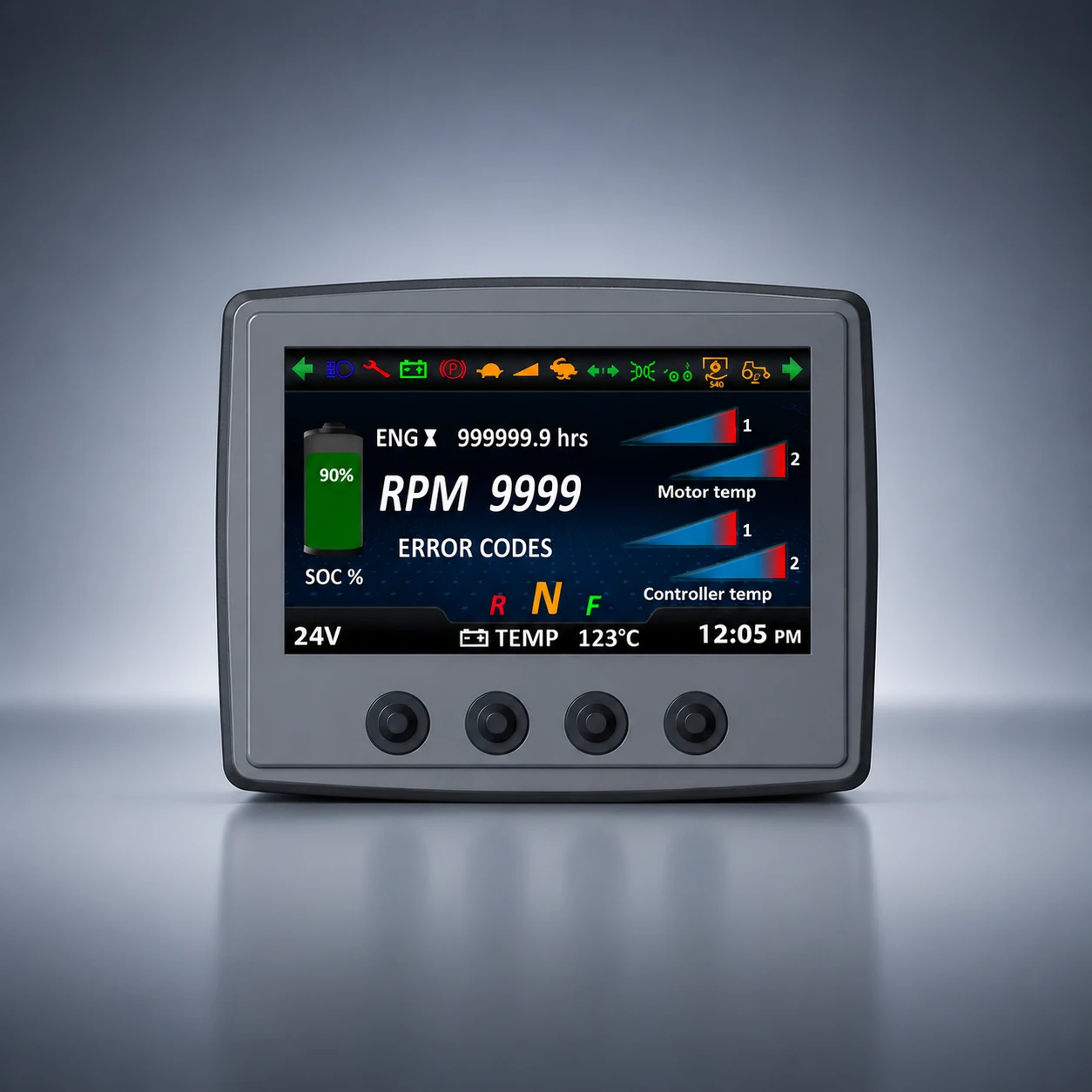

L5 Digital Display
Non-Touch Screen

L5 Digital Display

Request Data Sheet

Scroll to discover

5-inch 800×480 TFT vehicle display with CAN 2.0B, 8 digital and 2 analog inputs, reverse camera support, multi-tone buzzer, and IP65 ABS housing for automotive, agricultural, construction, and industrial machines.

Request Data Sheet

Scroll to discover

L5 Digital Display
Overview

Overview of the L5 Digital Display

The purpose of the L5 Digital Display is to supply machine information to the operator in a clear and accessible way by using a graphical user interface. The screen displays all necessary information on machine parameters and warnings and information about the system. The device supports not only analog but also digital input types and uses the CAN 2.0B protocol to transmit information. The L5 is manufactured in order to operate successfully in tough conditions; therefore, it provides durability and electromagnetic compatibility.
CAN2.0B
5"SIZE
AnalogCamera
!Alert Message
Digital Input
IP 65
ReversePolarity
BOOTLOADER
Analog Input
Multi ToneBuzzer
EMCCOMPLIANT

discover more

Talk to our team
Specifications

Technical Specifications

Core hardware, I/O, interface, and operating parameters for L5 Digital Display.
01

Display

5" colour TFT, 800 × 480, anti-glare

02

Brightness

800 cd/m²

03

Communication

CAN 2.0B

04

Digital inputs

8 channels

05

Analog inputs

2 channels

06

Camera

Reverse camera interface

07

Connector

Plug-and-play connector architecture

08

Audio

Multi-tone buzzer for warning notifications

09

Software

UDS Boot Loader for software updates

10

Supply voltage

8-32 V

Features

Features of our L5 Digital Display

Hardware, interface, and protection capabilities built into the L5 Digital Display.
  1. 01

    5-inch colour TFT display

  2. 02

    800 × 480 screen resolution

  3. 03

    CAN 2.0B communication support

  4. 04

    8 digital input channels

  5. 05

    2 analog input channels

  6. 06

    Reverse camera interface support

  7. 07

    UDS Boot Loader software update capability

  8. 08

    Multi-tone buzzer for warning notifications

  9. 09

    Plug-and-play connector architecture

  10. 10

    High visibility anti-glare display

  11. 11

    Reverse polarity protection

  12. 12

    EMC compliant design

  13. 13

    Rugged ABS housing

  14. 14

    IP65 environmental protection

  15. 15

    Designed for demanding vehicle applications

Why Us

Why Choose Indication Instruments for L5 Digital Display?

Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01

Designed for automotive, industrial and off-highway applications

02

Compact and easy-to-integrate display platform

03

Reliable CAN-based communication architecture

04

Supports both analog and digital signal monitoring

05

Reverse camera integration capability

06

Software upgradeability through UDS Boot Loader

07

Rugged IP65 and EMC-compliant construction

08

High-quality display performance with anti-glare technology

09

Backed by Indication Instruments’ expertise in vehicle instrumentation and electronics

FAQ

Frequently Asked Questions

A rugged 5-inch TFT from Indication Instruments for vehicle and machine monitoring in automotive, agricultural, construction, heavy-duty, and industrial applications.

5-inch colour TFT at 800 × 480 with 800 cd/m² brightness and an anti-glare surface.

Yes. The L5 uses CAN 2.0B and also accepts 8 digital and 2 analog inputs.

IP65 ABS housing with EMC-compliant electronics, intended for demanding vehicle environments.

The published L5 specification describes a 5-inch digital TFT with CAN, I/O, and camera support. It does not list capacitive touch (unlike the N7T).
