Inputs
Accepts Digital / Analog / CAN2.0B (J1939 protocol) signals
Non-Touch Screen

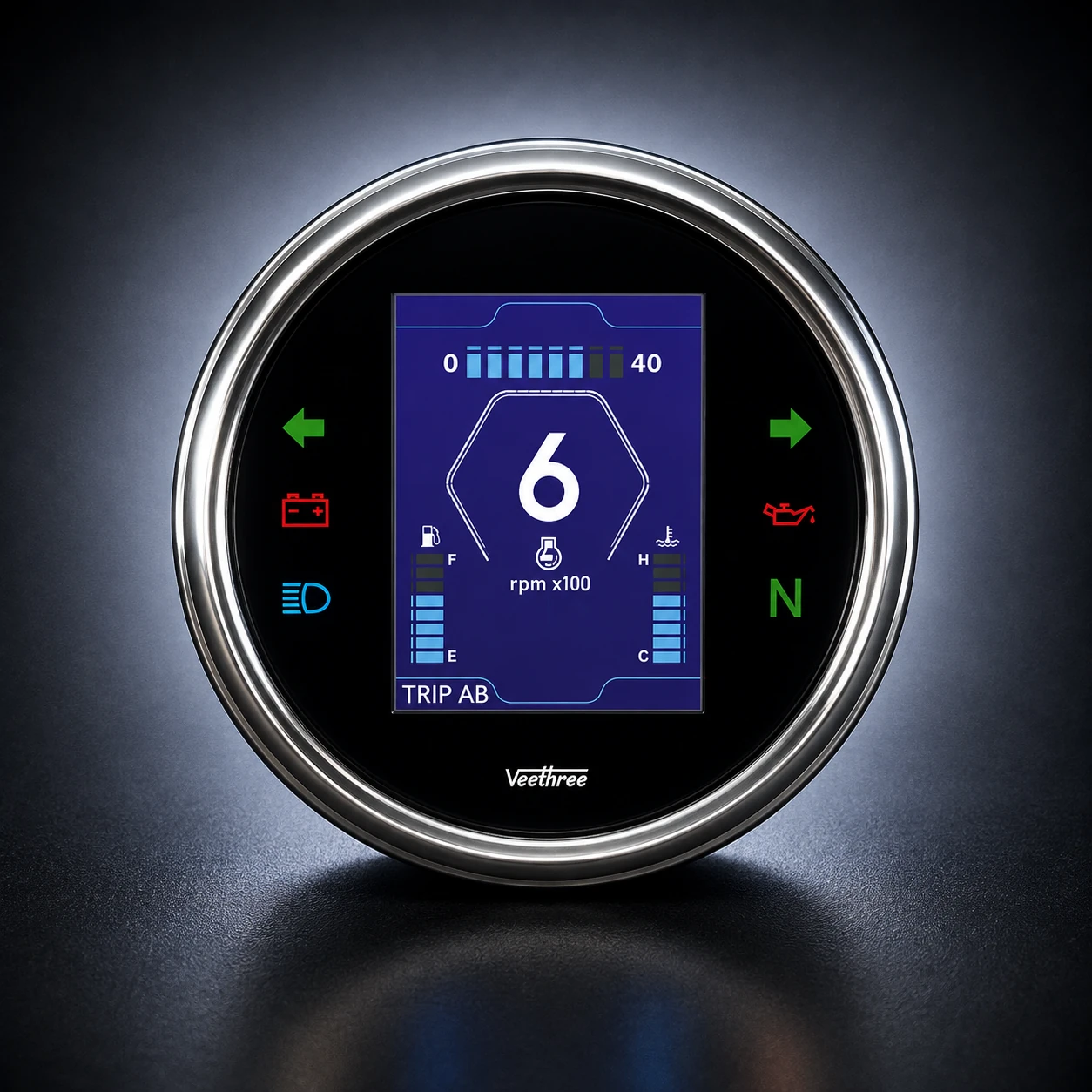

N24 Digital Display
The N24 Digital Display is a compact 2.4-inch TFT display designed for automotive, agriculture, construction, industrial, and off-road applications. It supports CAN 2.0B, J1939, analog and digital inputs, with six LED indicators and a 240 × 320 anti-glare screen. Built with durable ABS, reverse polarity protection, EMC compatibility, and IP-rated protection, it operates reliably from -30°C to +80°C.
Overview
Overview of the N24 Digital Display
The N24 Digital Display is designed to provide essential machine and vehicle information through a compact digital gauge platform. Its 2.4-inch colour TFT display delivers graphical visualization of operating parameters while maintaining a familiar round gauge appearance. The display supports CAN-based communication using the J1939 protocol and can accept analog and digital signals for monitoring key system functions. Integrated LED tell-tales provide instant visual indication of vehicle status and warnings, helping improve operator awareness.
Specifications
Technical Specifications
Core hardware, I/O, interface, and operating parameters for N24 Digital Display.
Display
2.4” Colored TFT
Connector
Plug & Play Connector - Deutsch DT 06 - 6S DT 06-6SC015 (06 pins)
Compliance
EMC Compliant
Protection
IP65
Resolution
240 × 320
Communication
CAN2.0B (J1939 protocol)
Software Update
Through UDS Boot loader
Telltale Indicators
6 LED based static tell tales indicators on dial
Electrical Protection
Reverse Polarity Protection
Features
Features of our N24 Digital Display
Hardware, interface, and protection capabilities built into the N24 Digital Display.
- 01
2.4-inch colour TFT display
- 02
240 × 320 display resolution
- 03
Compact round gauge design
- 04
CAN 2.0B communication support
- 05
J1939 protocol compatibility
- 06
6 integrated LED tell-tale indicators
- 07
Analog and digital signal monitoring
- 08
UDS Boot Loader software update capability
- 09
High-brightness anti-glare display
- 10
Plug-and-play Deutsch connector system
- 11
Reverse polarity protection
- 12
EMC compliant design
- 13
Compact dashboard integration
- 14
Rugged ABS housing
- 15
IP65 environmental protection
Why Us
Why Choose Indication Instruments for N24 Digital Display?
Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01
Compact digital gauge solution for space-constrained dashboards
02
Reliable CAN 2.0B and J1939 communication capability
03
Integrated tell-tales for enhanced operator awareness
04
High-brightness TFT display for improved visibility
05
Supports analog and digital signal monitoring
06
Software upgradeability through UDS Boot Loader
07
Plug-and-play installation architecture
08
EMC compliant and automotive-grade design
