Inputs
Accepts 2 Analog inputs and 8 Digital inputs
Non-Touch Screen

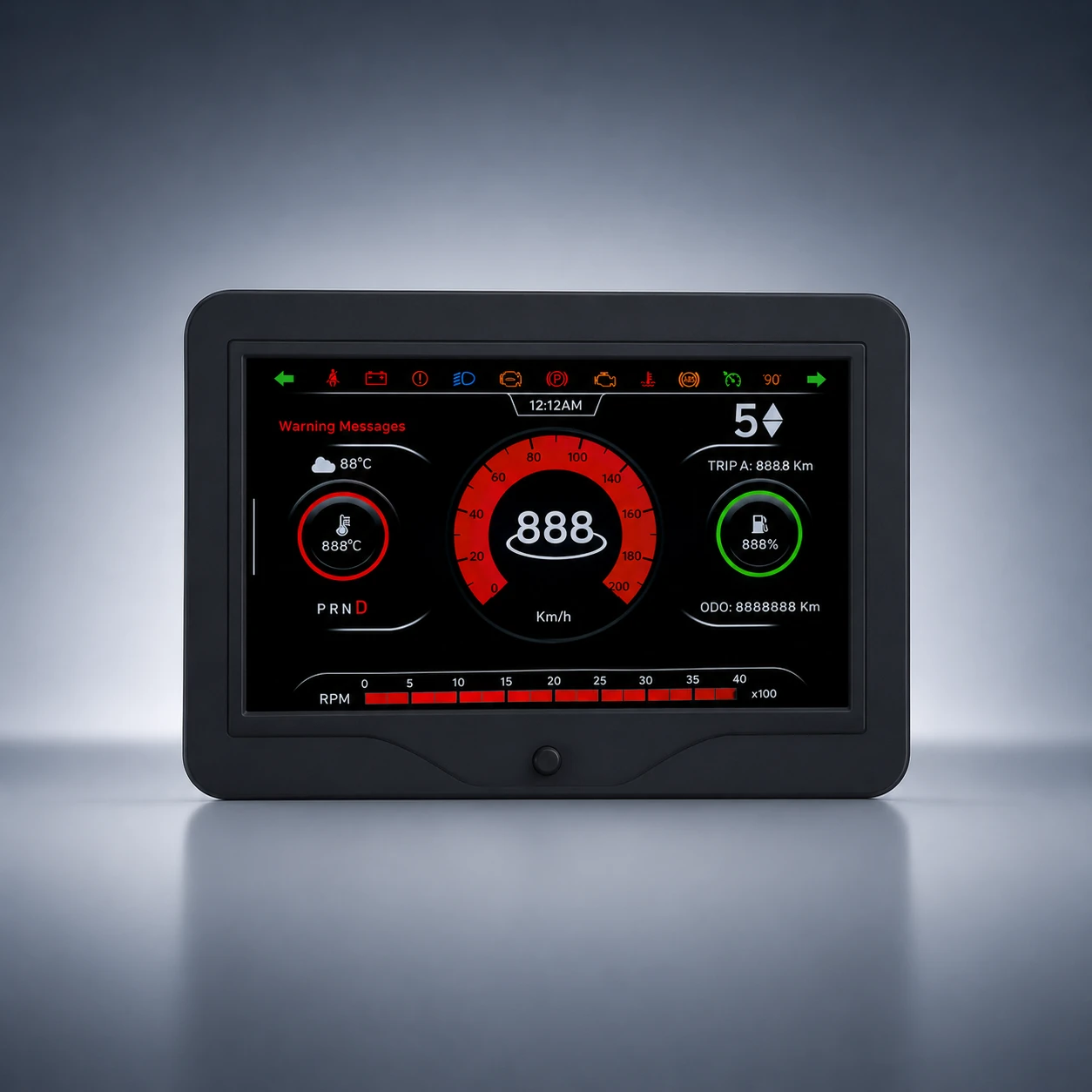

L10 Digital Display
A 10.1-inch colour TFT display with CAN 2.0B connectivity, rotary encoder navigation, and IP65-rated protection
Overview
Overview of the L10 Digital Display
The L10 Digital Display is designed to provide operators with a larger viewing area for machine information, diagnostics and warning notifications. Its 10.1-inch IPS screen delivers clear visualization of operating parameters, helping improve operator awareness and system monitoring. The display supports both analog and digital inputs while communicating through CAN 2.0B, allowing seamless integration with modern vehicle and equipment architectures. A rotary encoder simplifies screen navigation and menu control, providing convenient access to system information even in challenging operating environments. Designed for long-term reliability, the L10 combines rugged construction, environmental protection and software update capability in a versatile display platform. Indication Instruments offers the L10 Digital Display as an advanced monitoring solution for vehicles and equipment requiring a larger graphical interface and dependable performance.
Specifications
Technical Specifications
Core hardware, I/O, interface, and operating parameters for L10 Digital Display.
Display
10.1” coloured TFT
Compliance
EMC compliant
Navigation
Rotary Encoder for user interaction & screen navigation
Protection
IP65
Resolution
1024 × 600
Connectivity
Plug and Play connectors
Communication
CAN2.0B interface
Software Update
Software Updatable through UDS Boot Loader
Camera Interface
Analog camera interface for reverse park assist with fish eye correction
Features
Features of our L10 Digital Display
Hardware, interface, and protection capabilities built into the L10 Digital Display.
- 01
10.1-inch colour IPS display
- 02
1024 × 600 resolution
- 03
CAN 2.0B communication support
- 04
8 digital input channels
- 05
2 analog input channels
- 06
Rotary encoder navigation
- 07
Reverse camera interface support
- 08
UDS Boot Loader software update capability
- 09
Alert and warning message functionality
- 10
High visibility anti-glare display
- 11
Reverse polarity protection
- 12
EMC compliant design
- 13
Plug-and-play connector system
- 14
Rugged ABS housing
- 15
IP65 environmental protection
- 16
Suitable for demanding mobile equipment applications
Types
Types of L10 Display Features Offered
- 01
Indication Instruments offers the L10 Digital Display as an advanced monitoring solution for vehicles and equipment requiring a larger graphical interface and dependable performance.
- 02
The display features a 10.1-inch IPS colour screen with 1024 × 600 resolution, enabling clear presentation of operational data, warnings and diagnostics. CAN communication capability allows integration with electronic control systems, while analog and digital inputs provide flexibility for monitoring multiple machine functions.
- 03
The display also supports reverse camera integration to improve operator visibility and equipment safety. Navigation is managed through an integrated rotary encoder, allowing intuitive control of menus and display functions.
- 04
Software updates can be performed through the UDS Boot Loader, ensuring the display remains adaptable to evolving application requirements.
Why Us
Why Choose Indication Instruments for L10 Digital Display?
Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01
Designed for automotive, industrial and off-highway applications
02
Large IPS display for enhanced information visibility
03
Reliable CAN-based communication architecture
04
Supports analog and digital signal monitoring
05
Reverse camera integration capability
06
Intuitive rotary encoder navigation
07
Software upgradeability through UDS Boot Loader
08
Rugged IP65 and EMC-compliant construction
09
Backed by Indication Instruments expertise in vehicle instrumentation and electronics
FAQ
Frequently Asked Questions
REQUEST
Request the data sheet
Send us your information and our technical engineering team will email you the full specification sheet, drawing files, and pricing structure.
L10 Digital Display documentation
Request the datasheet
We’ll send the product datasheet directly to your inbox.
