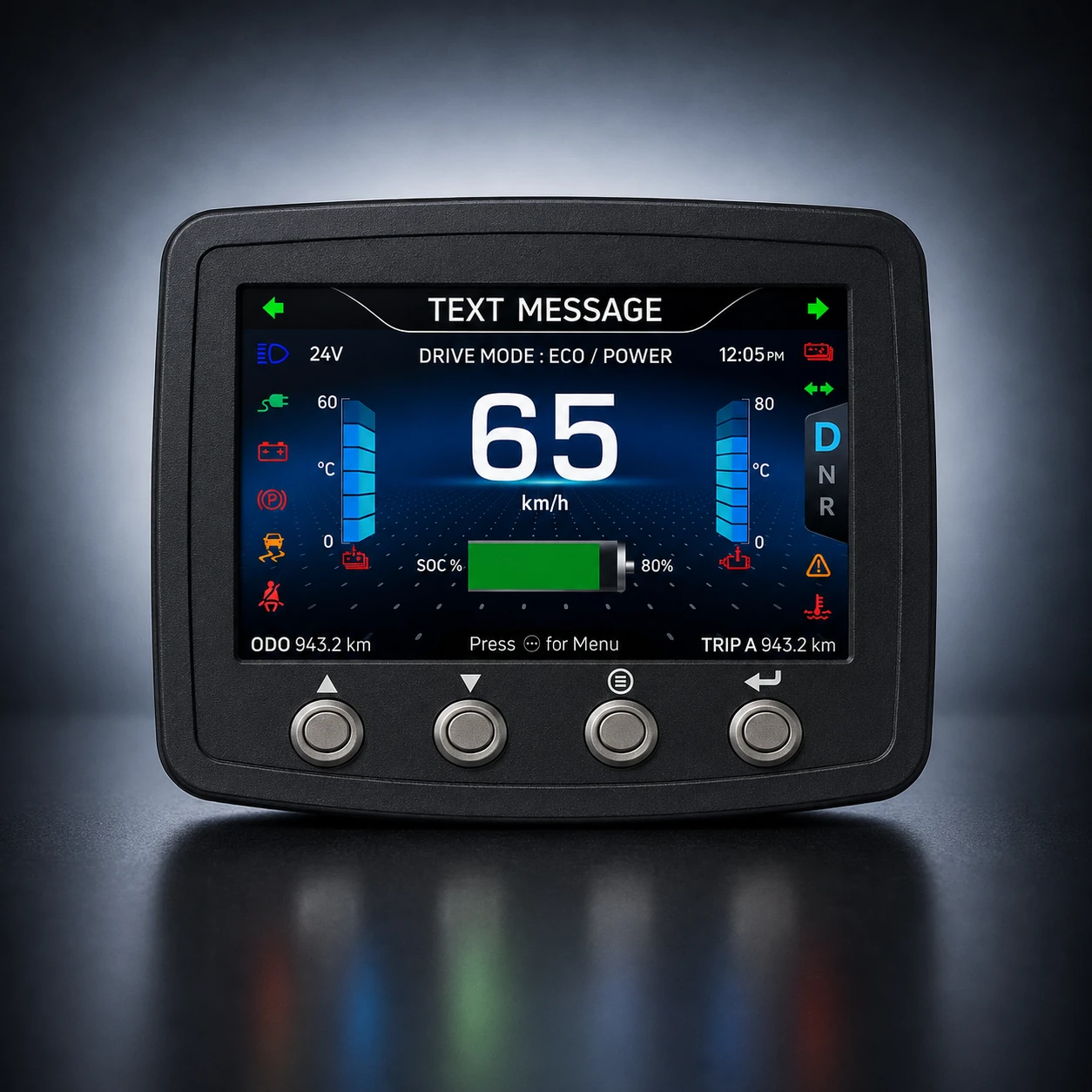

N54 Digital Display

Name: N54 Digital Display
Brand: Indication Instruments

Request Data Sheet

Scroll to discover

A rugged 5-inch TFT display with CAN 2.0B connectivity, touch-button navigation, and IP67-rated protection

Request Data Sheet

Scroll to discover

Overview

Overview of the N54 Digital Display

The N54 Digital Display gives operators a clear 5-inch IPS view of machine performance, diagnostics, and warnings. CAN 2.0B plus analog and digital channels integrate with a wide range of vehicle and equipment systems. Four push buttons handle menus in gloves and vibration. Optical bonding and an IP67 enclosure keep this industrial digital display readable and sealed in outdoor, high-vibration duty.

discover more

Specifications

Technical Specifications

Core hardware, I/O, interface, and operating parameters for N54 Digital Display.

Audio

Multitone Buzzer for audio warning

Inputs

Accepts digital/Analog/CAN2.0B signals & CVBS video input for RPAS view

Display

5” Colour TFT display screen with optical bonded cover glass & AG, AF coated

Compliance

EMC compliant

Navigation

Screen navigation through capacitive touch buttons on cover glass

Protection

IP67 compliant

Resolution

800 × 480

Video Input

CVBS video input for RPAS view

Connectivity

Plug & play connectors

Communication

CAN2.0B

User Interface

Push Button × 4

Electrical Protection

Reverse Polarity Protection

Features

Features of our N54 Digital Display

Hardware, interface, and protection capabilities built into the N54 Digital Display.

01
5-inch colour IPS display
02
800 × 480 screen resolution
03
Optical bonded cover glass
04
1000 cd/m² high-brightness panel
05
CAN 2.0B communication
06
8 digital inputs
07
Up to 4 configurable digital outputs
08
7 analog inputs
09
CVBS reverse camera support
10
Multi-tone audio warning
11
Four navigation push buttons
12
UDS Boot Loader software update
13
Reverse polarity protection
14
Plug-and-play connector system
15
Rugged ABS housing
16
IP67 environmental protection

Why Us

Why Choose Indication Instruments for N54 Digital Display?

Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.

Designed for demanding automotive and off-highway applications

High-brightness IPS panel with optical bonding

CAN 2.0B communication

Extensive analog and digital signal monitoring

Configurable digital outputs

Reverse camera integration

Multi-tone warning and alert functions

Field updates through UDS Boot Loader

Rugged IP67 and EMC-compliant construction

Backed by Indication Instruments’ vehicle instrumentation and electronics experience

FAQ

Frequently Asked Questions

What is the N54 Digital Display used for?

The N54 Digital Display is a 5 inch digital display for automotive, agricultural, construction, industrial, and off-road vehicles. It shows operating data, diagnostics, and warnings on one vehicle digital display.

What I/O and communication does the N54 support?

CAN 2.0B, 8 digital inputs, up to 4 configurable digital outputs, 7 analog inputs, and a CVBS reverse camera.

What are the screen specifications?

A 5-inch IPS panel at 800 × 480, 1000 cd/m², with optical bonded cover glass.

How do operators navigate the N54?

Four dedicated push buttons handle menus. A multi-tone buzzer covers audible alerts.

How is the N54 protected and updated?

IP67 ABS housing, EMC-compliant electronics, reverse-polarity protection, plug-and-play connectors, and UDS Boot Loader field updates.
