Gauges
4 Sonceboz stepper motor driven gauges
Truck/Bus Cluster
L4C3

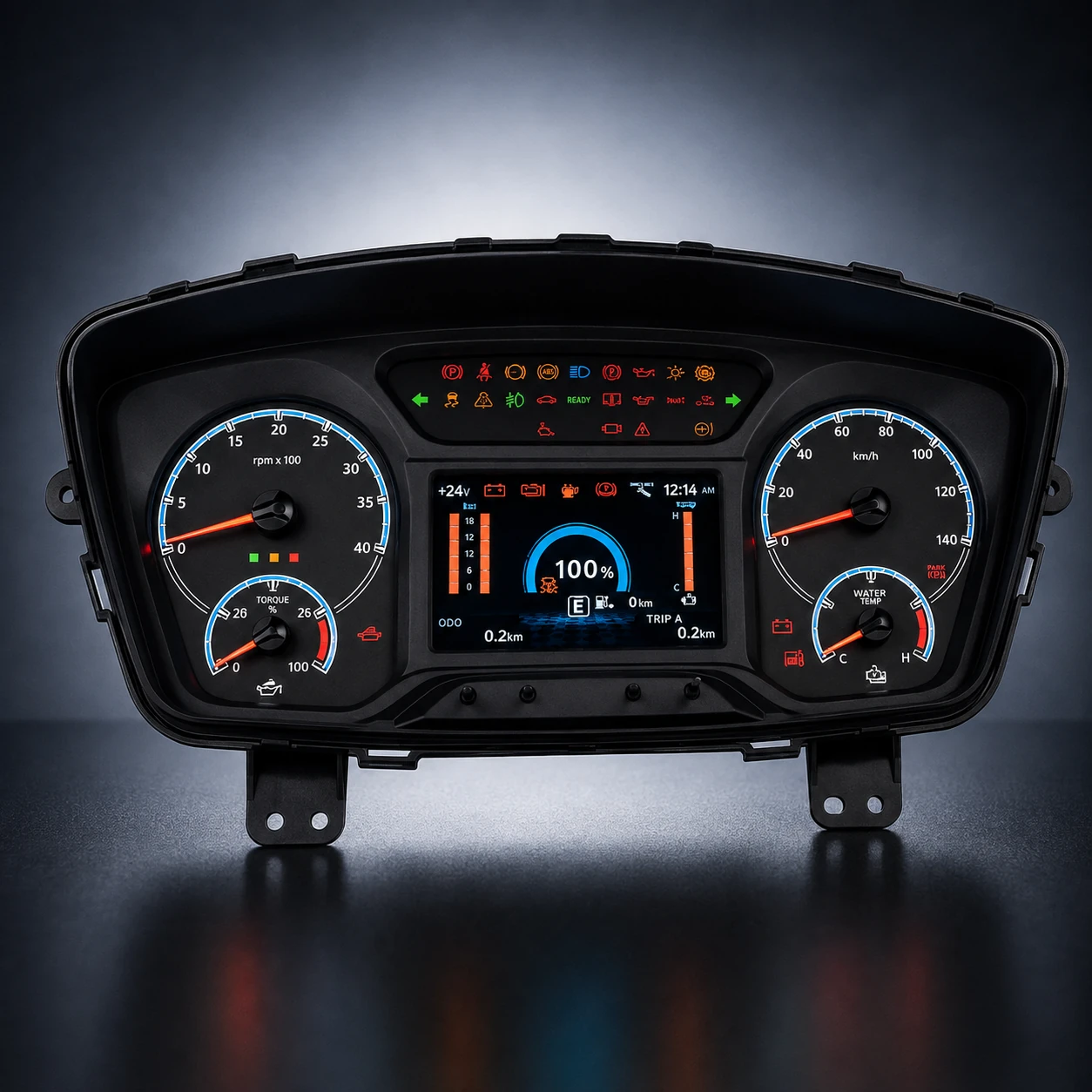

OEM instrument cluster with 4 stepper motor gauges, 5” TFT display, CAN 2.0B (J1939) support, digital and analog inputs, UDS bootloader updates, multitone buzzer, and water/dust protection
Overview
Overview of the L4C3
The L4C3 Instrument Cluster is built for fast reading: precise analogue dials for primary values and an 800 × 480 TFT for system data, messages, and graphical status. It meets current vehicle electronics and monitoring needs without dropping traditional gauge readability. The construction is intended for tough commercial and off-highway duty. Compared with L4A and H4A, L4C3 is the TFT instrument cluster in the four-gauge family: colour graphics instead of a monochrome EBN panel, with a smaller hardwired input count and dual TE connectors. The L4C3 from Indication Instruments is the colour-display option for cabs that need higher visibility than a monochrome display cluster.
Specifications
Technical Specifications
Core hardware, I/O, interface, and operating parameters for L4C3.
Inputs
2 Digital Inputs, 4 Analog Inputs
Display
5” TFT Display (800 × 480)
Warning
Multitone Buzzer
Connectors
2 × 32-pin TE connectors
Protection
Water & Dust Protection (ISO 9000 Part 16)
Communication
CAN 2.0B (J1939)
Software Update
UDS Boot Loader
Features
Features of our L4C3
Hardware, interface, and protection capabilities built into the L4C3.
- 01
Four Sonceboz stepper-motor gauges
- 02
5-inch TFT display, 800 × 480
- 03
CAN 2.0B (J1939) communication
- 04
2 digital input channels
- 05
4 analogue input channels
- 06
Multi-tone warning buzzer
- 07
UDS boot-loader software updates
- 08
Plug-and-play dual TE connector architecture
- 09
Reverse-polarity protection
- 10
EMC-compliant design
- 11
Colour graphical information display
- 12
Rugged construction for demanding applications
- 13
Water and dust protection compliant
- 14
Suitable for commercial and off-highway vehicles
Types
Types of L4C3 Instrument Cluster Features Offered
- 01
The L4C3 from Indication Instruments is the colour-display option for cabs that need higher visibility than a monochrome display cluster.
- 02
Four Sonceboz stepper motors drive the analogue instruments for essential parameters. The 5-inch TFT (800 × 480) shows vehicle data and alert messages in colour. CAN 2.0B with J1939 support links this CAN Bus instrument cluster to vehicle ECUs.
- 03
Four analogue inputs and two digital inputs cover core sensors and discrete signals. A multi-tone buzzer marks warnings. Firmware updates run through a UDS boot loader so the automotive instrument cluster can take software changes without a hardware swap.
- 04
Plug-and-play dual TE connectors, reverse-polarity protection, and EMC-compliant design support off-highway vehicle cluster integration.
Applications
Applications of L4C3 Instrument Cluster
- 01
Commercial trucks
- 02
Agricultural machinery
- 03
Construction equipment
- 04
Off-highway vehicles
- 05
Fleet dashboard programmes
- 06
Platforms that need a CAN Bus instrument cluster or J1939 instrument cluster with colour graphics
Why Us
Why Choose Indication Instruments for L4C3?
Backed by decades of Tier-1 OEM engineering excellence, rigorous test standards, and specialized precision manufacturing.
01
High-precision stepper gauges plus a 5-inch colour TFT
02
CAN Bus instrument cluster / J1939 instrument cluster integration
03
Graphical messages and status, not only tell-tales
04
Integrated audible warnings
05
Field updates via UDS boot loader
06
Dual TE plug-and-play connectors
07
Built for agricultural, construction, and industrial vehicles
08
Indication Instruments / Veethree vehicle-electronics support
